Projects-Stairs & Rails

Project Name: Rodan & Fields
Project Type: Stairs & Rails
Location: San Francisco, Ca
General Contractor: Hathaway Dinwiddie

Project Description: Furnish and Installed custom mild steel stairs and rails. Stairs fabricated from open web joist stringers and bent plate treads and risers. Rails fabricated from square tubing and welded wire mesh. All steel treated with “ Blackened “ finish to keep the commercial / industrial appearance.

Click on the image to the right for a slide show.

Project Name: Google Tech Corners Building 6
Project Type: Stairs & Rails & Misc
Location: SunnyValle, CA
General Contractor: Level 10 Construction

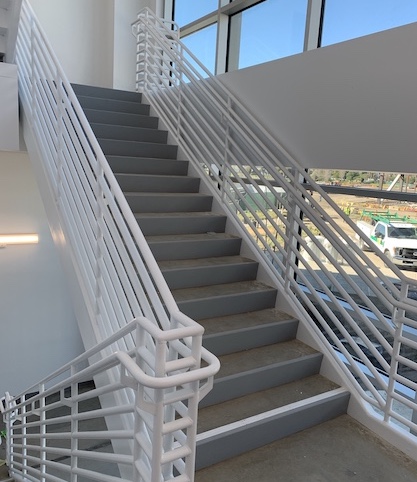

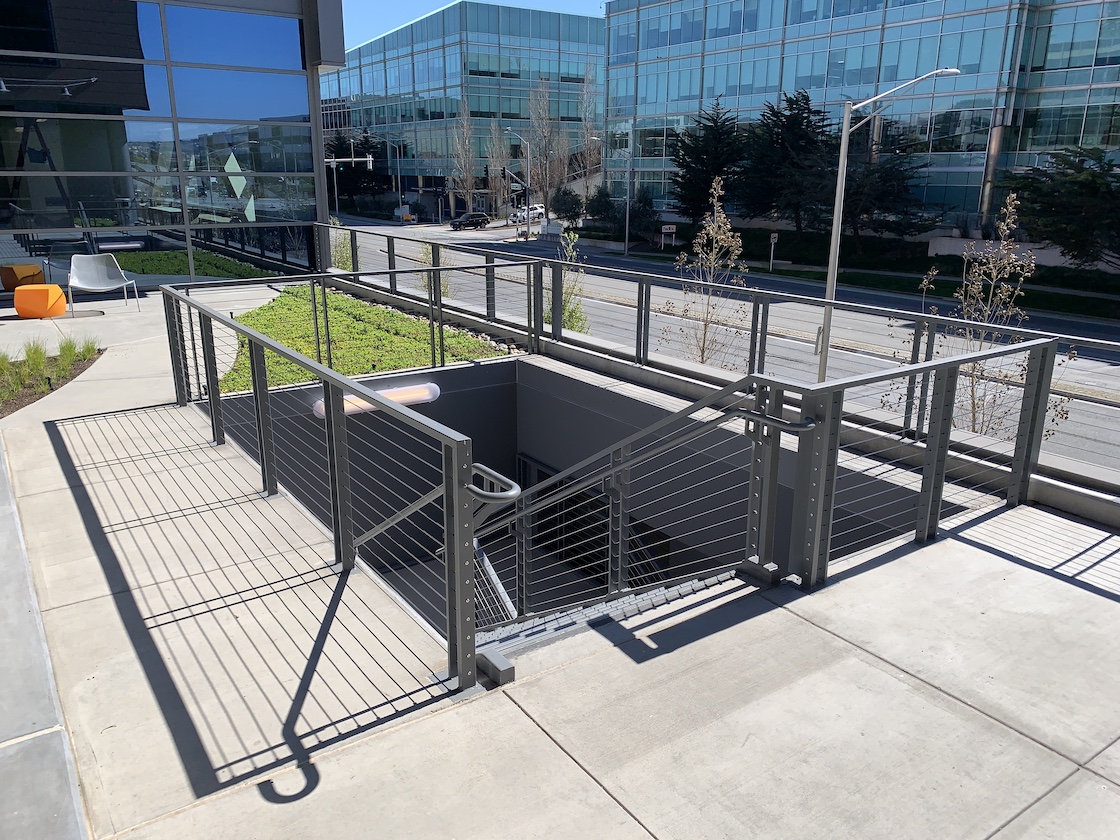

Project Description: Furnish and installed Design/Assist Stairs and Rails 1,2 and 3 from ground floor up 7 stories. Stairs fabricated from C15x33.9 channel stringers and a combination of flat bar and round tubing rails. Furnish custom fabricated 2” OD aluminum tubing Lobby Structure in East and West Lobbies,using high performance Tiger Co powder coating. Furnish custom stainless steel and para-cord structure. Laser cut spiral stainless steel base plates with 52 cable braces running from floor to ceiling above. There are 17 separate lines of 1/4” dia parachute cords in 4 separate colors strung between rolled ½” dia stainless round bars. Each cord is 400 feet in length. Furnish and Installed 1 ½ dia stainless steel tubing railing at sundecks located on 2nd, 3rd, and 4th floors. Furnish and installed Stainless Steel and Mild Steel Railing at 2nd floor overlooking East and West Lobbies. Exterior stainless steel cables rails along entry ramp to Parking Garage.

Click on the image to the right for a slide show.

Project Name: Vantage
Project Type: Stairs & Rails
Location: San Francisco, CA
General Contractor: Principal Builders

Project Description: Furnished and Installed Basement Channel Stringer Stair using 3/16” plate treads and risers. Tube Steel railing with 2”x2” mesh infill panels. Balcony Railing with matching Tube Steel and mesh design. All steel treated for “ Blackened “ Finish.

Click on the image to the right for a slide show.

Project Name: Stanford Building 524
Project Type: Stairs & Rails
Location: Stanford, CA
General Contractor: Hathaway Dinwiddie

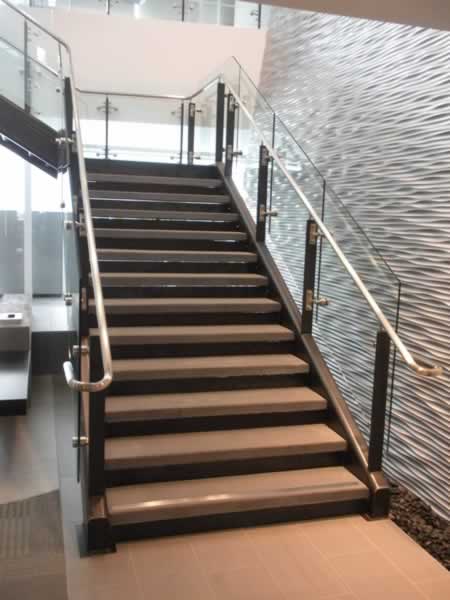

Project Description: Furnished and Installed 2 custom Stairs constructed from HSS 12x4 Tube Steel. Stair pans designed using perforated 3/16” mild steel risers. Stair treads are polished precast concrete. Rails constructed from ¾” x 2” Flat bar using 1 ½ dia grabrail. Furnished and Installed ¾” x 2” flat bar balcony rail mechanically attached to wood fascia.

Click on the image to the right for a slide show.

Project Name: Barclay's Global Investors
Project Type: Stairs & Rails
Location: San Francisco, CA
General Contractor: DPR Construction

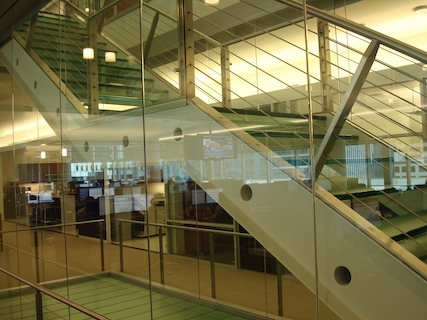

Project Description: Barclay's Global Investors Located in downtown San Francisco, California, our work is highlighted with a stainless steel cable rail and glass stair tread between the 5th and 6th floors of Barclay's upper level. This work also included stainless steel rails throughout the 5th and 6th floors and street levels.

Click on the image to the right for a slide show.
